MOQ:	100meter
Prix:	USD 1.55-2.88/M
Emballage Standard:	Tambour en bois
Période De Livraison:	7 jours
Méthode De Paiement:	L / C, T / T
Capacité D'approvisionnement:	836974KM/Week

Détails Informations

Description du produit

Informations détaillées

Lieu d'origine

La Chine

Nom de marque

QINGDAO YICABLE CABLE

Certification

KEMA/CE/ISO/TUV/RoSH

conducteur:

cuivre échoué

Isolant:

XLPE

Veste:

PVC

Exemple:

Disponible

Examinez la tension:

3.5KV

Temp de opération:

90 degrés

Marque de câble:

Impression ou graver

Couleur de veste:

Black

Mettre en évidence:

xlpe electrical cable

cross linked polyethylene cable

Description du produit

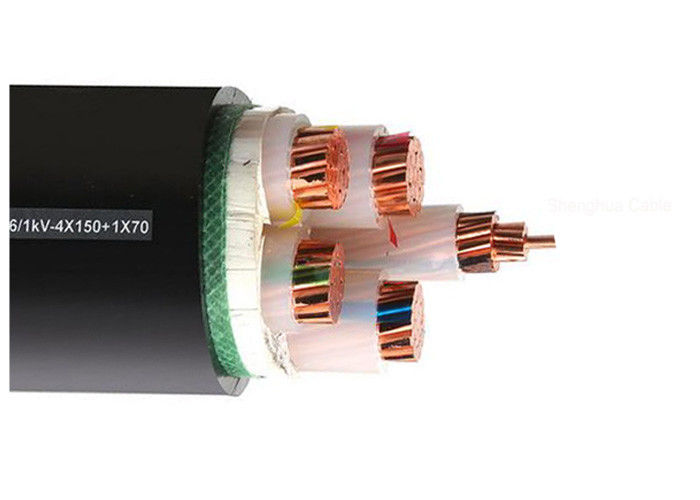

China Good Quality CU/XLPE/PVC-0.6/1KV 3x120+2x70mm2 XLPE Insulated Power Cable

Description:

0.6/1kv XLPE Insulated Electric Power cable

CU/XLPE/PVC, IEC 60502

IEC 60502, IEC 60228, GB/T 12706.1-2008.

CE, CCC, KEMA. ISO. VDE

Constructions

Conductor : Compact stranded copper conductor, Cl.2 as per IEC 60228

Insulation : XLPE(cross-linked polyethylene) rated at 90 ℃

Sheath : PVC type ST₂ to IEC 60502, black

Applications

For laying indoors and outdoors. Able to bear certain traction during installation, but not external mechanical forces. Laying single core cable in magnetic ducts is not allowed.

Standards

International: IEC 60502, IEC 60228

China: GB/T 12706.1-2008

Other standards such as BS,DIN and ICEA upon request

Technical data

Rated voltage: 0.6/1kV

Max. Conductor Temp.: normal (90℃), short circuit no more than 5 s (160℃ when section-area below 300mm², 140℃ when section-area above 300mm²)

Min. Ambient Temp.:The cable shall be pre heated if the ambient temperature is below 0℃

Min. Bending Radius: single core cable 20(d+D)±5%

Multi-core cable 15(d+D)±5%

Certificates

CE, RoHS, CCC, KEMA and more others at request

Ordering Advice

Rated Voltage

Application Standard: IEC/BS/UL/GB

Number of Cores

Conductor Size & Construction

Type of Insulation

Armored or unarmored. If armor, the armor type & material

The Requirement of Sheath

Length of Cable & Packing Requirement

Other Requirement

Technical Specifications:

Nom. Cross-section of conductor	Insulation Thickness	Sheath Thickness	Approx. O.D.	Approx. Weight	Max. D.C Resistance of Conductor (20 ℃)	Testing Voltage A.C	Current Rating
mm2	mm	mm	(mm)	kg/km	Ω /km	kV/5min	In air (A)	In soil(A)
4 × 10+ 1 × 6	0.7	1.8	18.3	649	1.83	3.5	60	77
4 × 16+ 1 × 10	0.7	1.8	21.1	965	1.15	3.5	83	105
4 × 25+ 1 × 16	0.9	1.8	24..5	1456	0.727	3.5	105	125
4 × 35+ 1 × 16	0.9	1.8	26.9	1863	0.524	3.5	125	155
4 × 50+ 1 × 25	1.0	1.9	28.8	2633	0.387	3.5	160	185
4 × 70+ 1 × 35	1.1	2.0	32.4	3565	0.268	3.5	200	225
4 × 95+ 1 × 50	1.1	2.1	35.6	4735	0.193	3.5	245	270
4 × 120+ 1 × 70	1.2	2.3	41.1	5977	0.153	3.5	285	310
4 × 150+ 1 × 70	1.4	2.4	43.6	7276	0.124	3.5	325	345
4 × 185+ 1 × 95	1.6	2.5	49.1	9055	0.0991	3.5	375	390
4 × 240+ 1 × 120	1.7	2.7	54.2	11567	0.0754	3.5	440	450
4 × 300+ 1 × 150	1.8	3.1	66.3	14321	0.0601	3.5	505	515
