XLPE Insulated Cable

XLPE Insulated Cable

MOQ: 500 MÈTRES
Prix: US$ 0.5~56 / meter
Emballage Standard: Tambours en bois
Période De Livraison: une semaine ou 10 jours
Méthode De Paiement: L / C, T / T
Capacité D'approvisionnement: 100 kilomètres par semaine
Détails Informations
Description du produit
Informations détaillées
Lieu d'origine
La Chine
Nom de marque
QINGDAO YICABLE CABLE
Certification
ISO,CE,IEC,KEMA
type de modèle:
Cable électrique d'en cuivre de basse tension
conducteur:
Cuivre
Tailles:
6 | 1000 SQMM
Noyaux:
Single
Isolant:
XLPE
Garantie:
deux ans
Gaine:
PVC
Mettre en évidence:

xlpe electrical cable

,

cross linked polyethylene cable

Description du produit

Copper conductor three core XLPE insulated low smoke halogen-free flame retardant polyolefin sheathed power cable


Applications
This product is applicable to shafts, water and soil, able to bear the larger positive pressure, with power frequency rated voltage of 1kV and below.
For laying indoors and outdoors. Able to bear certain traction during installation, but not external mechanical forces.


Application Standards

International: IEC 60502, IEC 60228, IEC60332

China: GB/T 12706 1-2008

Other standards such as BS, DIN and ICEA upon request



Manufacture Standards
International: IEC 60502, IEC 60228, (IEC 60332-3 for FR-type only)
China: GB/T 12706, (GB/T 18380-3 for FR-type only)
Other standards such as BS,DIN and ICEA upon request

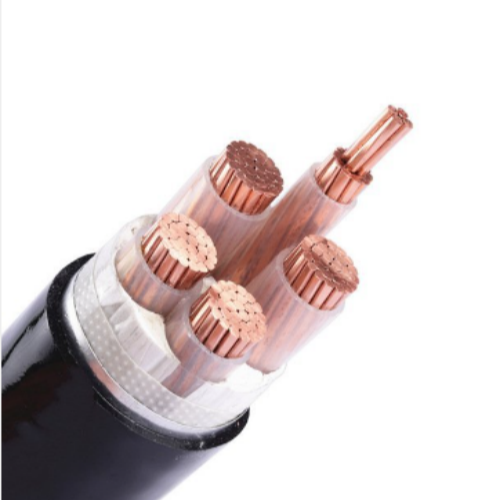

Constructions

Code : WDZN-YJV23
Standarts : TS IEC 60502, IEC 502, VDE 0271, BS 6346
Construction : 1- Solid, Stranded or Flexible Copper Conductor
    2- XLPE insulation (cross-linked PE) or PVC
    3- PVC inner Sheath or PE, LSOH
    4- Steel Tape Armored
    5- PVC outer sheath, or PE, LSOH
Application : Preferably for installation indoors, in cable ducts and in industrial plants or
    switching stations, underground installation with additional protection where
    mechanical damage is unexpected.
Technical Data : Max. operating temperature 90 ºC
    Short circuit temperature 250 ºC


Code Designation



YJ : XLPE insulation

V : PVC insulation or sheath

22 : Steel Tape Armored

Technical data

Rated voltage: 0.6/1kv Voltage
PVC Insulation: Maximum Conductor Temperature: under normal (75 ℃), emergency (130℃) or short circuit no more than 5 s (160℃) conditions.

XLPE Insulation: Maximum Conductor Temperature: under normal (90 OC), emergency (130OC) or short circuit no more than 5 s (250℃) conditions.

Min. Ambient Temp. 0 OC, after installation and only when cable is in a fixed position

Min. Bending Radius: 15 x cable O.D



Certificates

ISO,CE, KEMA ,IEC, RoHS, CCC, P3C and more others at request


PACKING AND SHIPPING



We are capable of meeting the most strict delivery schedules according to per purchase order. Meeting the deadline is always the top priority as any delay in the delivery of cable can contribute to overall project delay and cost overrun.
Cable is supplied in wooden reels, corrugated boxes and coils. Cable ends are sealed with BOPP self adhesive tape and non-hygroscopic sealing caps to protect the cable ends from moisture. The required marking shall be printed with a weather-proof material on the outsides of drum according to customer's requirement.




Quote Request Information

1. Material of conductor/insulation/sheath.

2. Voltage classes.

3. Cross section, Short circuit current capacity, tension strength.

4. Order Quantity



Les étiquettes:

câble de polyéthylène lié par croix,

câble d'alimentation XLPE,

câble électrique de xlpe
