1-630mm2 Copper Conductor and Screen Single Core MV Power Cable up to 35kV
  • 1-630mm2 Copper Conductor and Screen Single Core MV Power Cable up to 35kV
  • 1-630mm2 Copper Conductor and Screen Single Core MV Power Cable up to 35kV
  • 1-630mm2 Copper Conductor and Screen Single Core MV Power Cable up to 35kV
  • 1-630mm2 Copper Conductor and Screen Single Core MV Power Cable up to 35kV
  • 1-630mm2 Copper Conductor and Screen Single Core MV Power Cable up to 35kV

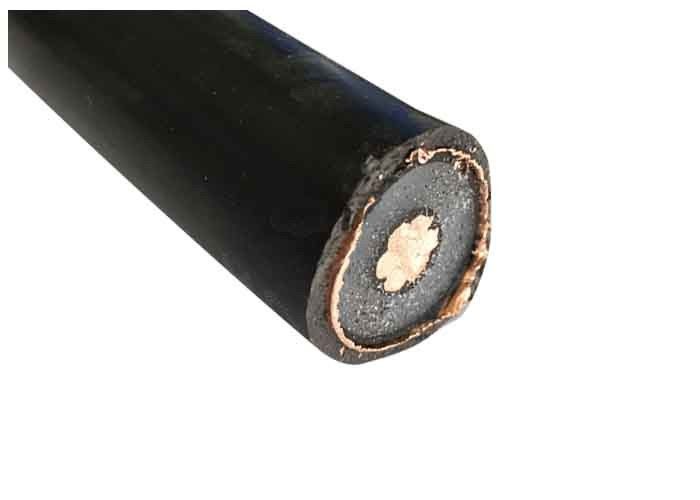

1-630mm2 Copper Conductor and Screen Single Core MV Power Cable up to 35kV

Lieu d'origine La Chine
Nom de marque QINGDAO YICABLE CABLE
Certification CE/IEC/KEMA/VDE
Détails du produit
Secteur en coupe:
1-630mm2
conducteur:
Cuivre compact et échoué
Isolant:
XLPE
Écran:
bande de cuivre
Gaine:
PVC (ST2)
Application:
Power station
Mettre en évidence:

xlpe electrical cable

,

cross linked polyethylene cable

Payment & Shipping Terms
Quantité de commande min
200 m
Prix
USD 1-299 Per Meter
Détails d'emballage
tambour Fer-en bois ou tambour en bois entier
Délai de livraison
Selon la demande
Conditions de paiement
L / C, T / T
Capacité d'approvisionnement
100KM PAR MOIS
Description du produit

1-630mm2 Copper Conductor and Screen Single Core MV Power Cable up to 35kV



Cable Application



Cu/XLPE/CTS/PVC/SWA/PVC 11kV medium voltage power cable may be used for power networks, in fixed installation outdoors in cable ducts or directly in the ground. The cable consists of a Class 2 stranded copper conductor, semi conductive conductor screen, XLPE insulation, semi conducting layer with a plain copper tape screen, PVC bedding, Aluminium Wire Armour and red PVC outer sheath. 6350/11000 volts to BS6622 and IEC 60502-2, flame retardant to IEC 60332-1.

Technical Information

Conductor Material: Copper
Conductor Identification: Coloured tape under screen
Conductor Shape: Circular
Conductor Flexibility: Stranded class 2
Material of the Inner Semi-conductor: Semi-conducting compound
Insulation: XLPE (Chemical)
Armour Type: Aluminium wires
Screen: Copper tape
Outer Sheath: PVC
Inner Sheath: PVC
Material of the External Semi-conduct: Extruded strippable
Colour: Red
Lead Free: Yes
Rated Voltage Uo/U (Um): 6350/11000V to BS6622 & IEC 60502-2
Installation Temperature: Minimum: 0°C Maximum: 60°C
Installation Type: Direct burial or in ducts
Operating Temperature: Minimum: -15°C Maximum: 90°C
Short-circuit Maximum Conductor Temperature: 250°C
Flame Retardant: Yes, IEC 60332-1
Bending Radius: 15 x Ø

Packing and shipping: We are capable of meeting the strictest delivery schedules according to per purchase order. Meeting the deadline is always the top priority as any delay in the delivery of cable can contribute to overall project delay and cost overrun.
Cable is supplied in wooden reels, corrugated boxes and coils. Cable ends are sealed with BOPP self-adhesive tape and non-hygroscopic sealing caps to protect the cable ends from moisture. The required marking shall be printed with a weather-proof material on the outsides of drum according to customer's requirement.



1-630mm2 Copper Conductor and Screen Single Core MV Power Cable up to 35kV 0



Les étiquettes:

câble de polyéthylène lié par croix,

câble d'alimentation XLPE,

câble électrique de xlpe
