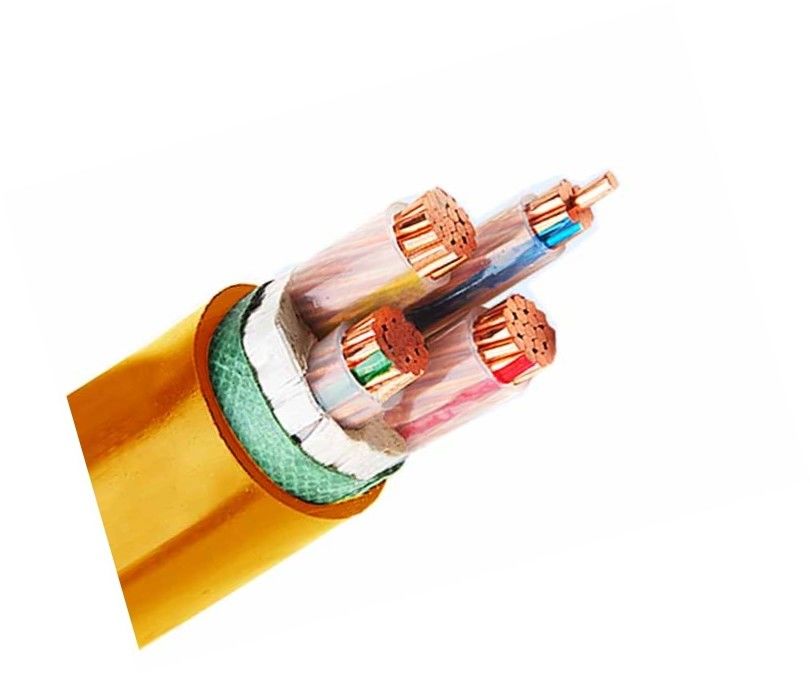

Fire Resistive Low Smoke Zero Halogen Cable Low Voltage Power Cable 0.6/1kV
  • Fire Resistive Low Smoke Zero Halogen Cable Low Voltage Power Cable 0.6/1kV
  • Fire Resistive Low Smoke Zero Halogen Cable Low Voltage Power Cable 0.6/1kV
  • Fire Resistive Low Smoke Zero Halogen Cable Low Voltage Power Cable 0.6/1kV
  • Fire Resistive Low Smoke Zero Halogen Cable Low Voltage Power Cable 0.6/1kV

Fire Resistive Low Smoke Zero Halogen Cable Low Voltage Power Cable 0.6/1kV

Lieu d'origine La Chine
Nom de marque QINGDAO YICABLE CABLE
Certification ROHS CE
Détails du produit
TEMPERATURE DE SERVICE:
℃ 90 (maximum)
Type:
600/1000V à tension inférieure
Couleur d'isolation:
Orange ou facultatif
Fonction:
Résistant au feu
Exemple:
1-1.5m
Application:
à l'intérieur, dans le tunnel, fossé de câble, au fond
Certificats:
VDE DE LA CE KEMA, LE CEI
d'emballage:
Tambour en bois en acier traité
inscription de câble:
Impression à l'encre
Mettre en évidence:

low smoke zero halogen wire

,

xlpe lszh cable

Payment & Shipping Terms
Quantité de commande min
300 m
Prix
0.38-25.6
Détails d'emballage
Tambour ou cas en bois
Délai de livraison
Selon le programme
Conditions de paiement
L / C, T / T
Capacité d'approvisionnement
50km/month
Description du produit

0.6/1kV Low Smoke Halogen Free Cable Shanghai manufacturer CU/XLPE/LSZH ROHS CE Certified



. Application for Fire Resistive Power Cable, Fire Rated Power Cable


  • This cable is specially designed for areas where integrity of electrical circuit is critical to maintain the power supply. Application usage can be found in:- emergency lightings, control and power circuits, fire alarm systems, communication systems, lifts and escalators, power stations, underground tunnels, sewage treatment plans, high-rise buildings, mass transit underground passenger systems, airports, petrochemical plants, hotels, hospitals,etc.

Specifications

Conductor : Plain Annealed, Stranded Circular Non – Compacted or Circular Compacted or Shaped Copper
Fire Barrier : Mica Tape
Insulation : XLPE (For FR-200) or LSOH (For FR-300)
Sheath :

LSOH


2. Construction for Fire Resistive Power Cable, Fire Rated Power Cable

Conductor : Plain Annealed, Stranded Circular Non – Compacted or Circular Compacted or Shaped Copper
Fire Barrier : Mica Tape
Insulation : XLPE (For FR-200) or LSOH (For FR-300)
Sheath : LSOH
Insulation Colour :

2C – Brown & Blue

3C – Brown, Black & Grey

4C – Brown, Black, Grey & Blue

2C+E – Brown, Blue + Green/Yellow

3C+E – Brown, Black, Grey + Green/Yellow

4C+E – Brown, Black, Grey, Blue + Green/Yellow

5C & above – White Cores Printed With Number

Note:
1. The models also contain fire-resistant type of low voltage power cable.
2. When signing the contract, the fire resistant type must be specified. For example, if type A is preferred, please add "A" to the end of "ZR", forming "ZRA", and A is usually used in places where the fire resistant property is highly required. B and C follow the same rule. In addition, if there is no letter after "ZR", the cable will be produced following "ZRC".


Fire Resistive Low Smoke Zero Halogen Cable Low Voltage Power Cable 0.6/1kV 0

Les étiquettes:

Basse fumée fil nul d'halogène,

Cable électrique de LSZH,

câble de lszh de xlpe
